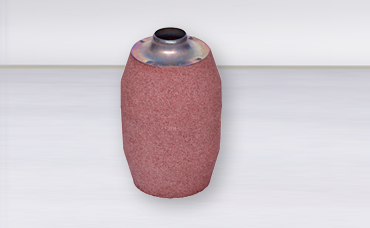

Spotex HD VC-Series- High density Sleeves Spotex is the high-density range of exothermic sleeves from INEXO

Spotex sleeves are ideal for high-pressure automatic greensand moulding lines, wherethey must withstand extreme pressures while remaining easy to apply. With highcompressive strength resistance and versatile application options.

• Available from 8 cc to 1650 cc
• Modulus range covering from 7.5 mm to 48 mm In steps for every 2 mm modulus Breaker core options to suit a wide range of moulding options
• Metal core is designed to minimise contact area and reduced fettling
• The core has low surface area
• Sleeves are also available with sand breaker cores and mesh.

Key Features:

• Accurate :

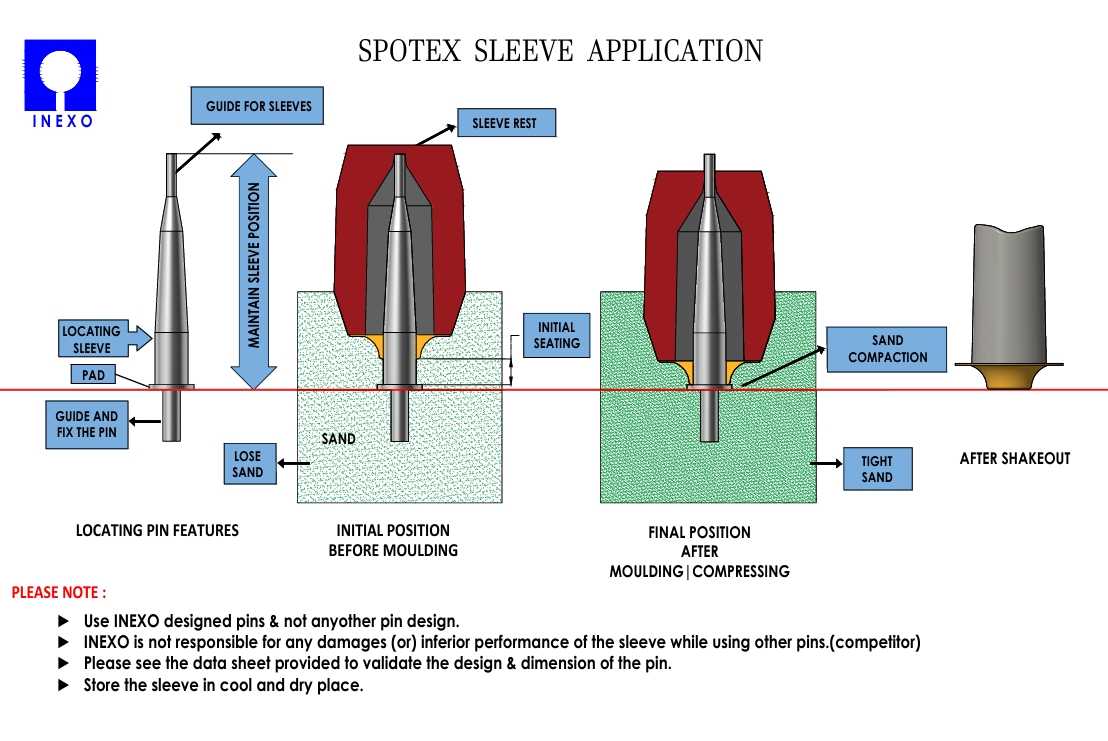

  • Spot riser/sleeve for minimum contact area Adjustable/fixed locating pins Round or Oval Riser Neck
• Intelligent:
  • Excellent Compression of Moulding
  • Defined Riser Volume
  • Optimised Neck Design
• Reliable:
  • Process Secured Breaking Edge
  • Reduced Fettling Cost
  • Error Free Casting Surface
